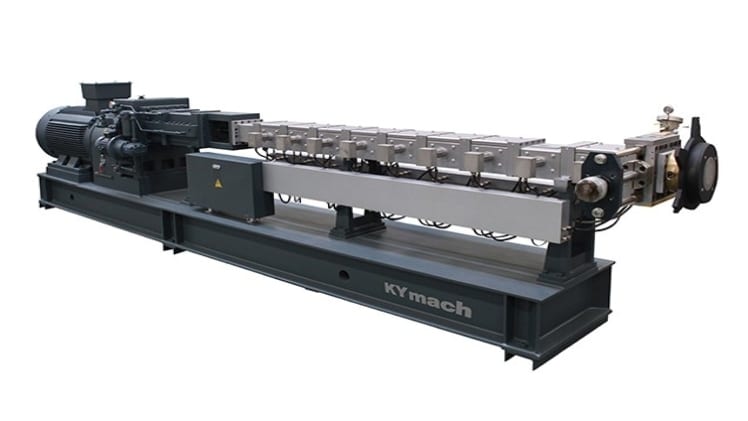

What is a Twin Screw Extruder and How Does it Work?
Twin screw extrusion is a multi-purpose and hi-tech procedure that allows for the wide use of thermoplastic shapes in the modern industries of plastics, food, pharmaceuticals, and chemicals. This particular method utilizes two parallel intermeshing screws operating within the same barrel, which serves to mix, transfer and mold the material components. It is possible to have distinct screw designs and barrel zones in the twin screw extruders to accurately control the temperature, shear, and pressure during complex compounding processes.
For more in-depth information, you should view the twin screw extruder – UDTECH.
Basic Parts of a Twin Screw Extruder
Each twin screw extruder contains several crucial parts which perform different functions to facilitate the extrusion of materials. These include the following:
- Feed Section: This zone is for the import of raw materials into the tub. The control of the raw materials into the tub is done by feeding mechanisms.
- Screws: These are the modular segments of an extruder. The geometry of the screws determines the mixing intensity, the time a material spends in the machine and the speed at which it is transferred.
- Barrel: This part of the extruder contains the screws and is able to incorporate many cooling and heating zones to adjust temperatures.
- Drive System: It comprises the drive motor and a chandelier which rotates while proportionally reducing the speed of the motor. These are tools that guarantee that the screws are turned at just the correct speed to ensure appropriate processing conditions.
- Die Assembly: The die attached to the extruder end molds the material into desired shapes like strands, sheets, or pellets.
- Control System: Specialized control panels alter and oversee adjustments like temperature, pressure, and even screw rotation speed.
View twin screw extruder – UDTECH for More Details
The Extrusion Process: Step-by-Step Transformation of Initial Material into Final Output
The procedure starts by first introducing base materials like polymers, additives, and fillers into the feed area. The provided twin screws move these materials into the barrel, where they are mixed, and heat is applied in a controlled manner. The design of the screw acts to mix the additives and rotor in such a way as to allow better distribution and avoid the destruction of the materials. After sufficient temperature and mixing have been achieved, the material is pushed out through the die to shape it into the required end product. The extrudate is then cooled, solidified, cut, and trimmed to finish the product and make it ready for specific application needs.
What are the Different Types of Twin Screw Extruders?
Co-rotating vs. Counter-rotating Twin Screw Extruders
The direction of the screw rotation of twin screw extruders determines whether they operate in counter-rotating or co-rotating modes. The co-rotating types of twin screw extruders are designed with screws rotating in the same direction leading to high shear rates and efficient mixing. They are commonly used in reactive processing, blending, and compounding. On the other hand, counter-rotating twin screw extruders rotate their screws in opposing directions which creates low shear forces. This configuration is used for gentle mixing purposes such as extruding heat-sensitive materials like PVC.
Intermeshing and Non-intermeshing Configurations
Twin screw extruders can also be classified depending on the extent of intermeshing of their screws. Intermeshing twin screw extruders have screws that tightly mesh with each other, thus ensuring proper and uniform mixing during material transport. This design reduces backflow and enhances process control; therefore, it is used for highly filled and compounded materials. However, nonintermeshing twin screw extruders have their screws placed parallel to one another and therefore do not overlap. This design provides freedom for material flow and is therefore used in applications that require gentler processing and lower pressure.
Conical Twin Screw Extruders: An Exotic Design
Conical twin screw extruders are defined by their feeding and discharge ends which have a tapered screw geometry where the feed end has a larger diameter than the discharge end. This design results in a number of advantages, such as better feeding, higher compression, and reasonable processing of materials with different viscosities. Conical twin screw extruders are used in producing pipes, making profiles, and other types of extrusion, which need a constant rate of throughput and very accurate dimensional control. Their unique design makes possible the operation at lower speeds of the screws, which results in less energy used during the extrusion process without sacrificing the quality of the extruded parts.
What are the Advantages of Twin Screw Extruders over Single Screw Extruders?
Enhanced Mixing and Kneading Capabilities
Twin screw extruders are ideally suited for applications demanding high levels of mixing and kneading. The intermeshing screws have better efficiency and uniformity in the distribution of materials compared to single-screw extrusion. This is advantageous because of some intricate composites and multi-grade formulations. The control over mixing, which is provided, is valuable to guarantee the homogeneous dispersion of additives, fillers, and colorants for good product consistency and fewer material characteristics variability.
More Control over Shear and Torque
Control over shear forces and torque is among the many benefits of twin screw extruders, where precise adjustment is possible. This offers the options of more specific processing conditions to the materials or applications needed. Changing the design of the screws and their rotation speed, as well as the temperature of the barrel, can ensure that the material is not degraded and the needed mechanical or chemical properties are obtained. This is a strong advantage in industries making high-quality and performance-critical extruded products.
Flexibility in Material Processing
Processing of many materials such as thermoplastics, elastomers, biodegradable polymers, and highly filled composites is effectively done by twin screw extruders because of their unparalleled flexibility. Their design allows for the use of complex formulations with varying viscosities, making them ideal for a multitude of industrial uses, such as in packaging, automotive, and even construction. In addition, twin screw extruders can also be customized as per the needs of the specific processing or for the newer materials, which aims at improving productivity.
How to Choose the Right Twin Screw Extruder for Your Application?
Considering Screw Design and Configuration
Screw design and configuration are relevant factors in the selection of the twin screw extruder. It is essential that the screw diameter, L/D ratio, and element geometry correspond to the processing requirements of the material in use. For example, screw elements can be set to the optimum geometry for mixing, degassing, or reactive extrusion to ensure efficiency and product quality. Further, in the selection of co-rotating versus counter-rotating screws, shear forces and residence time are set, which deterministically bear on the final material properties.
Evaluating Extruder Size and Capacity
It is equally important to determine the extruder size and production capacity to avoid greatly under or over-meeting production goals. Some of the considerations are required throughput, material cooling behavior during processing and volumetric expansion for future production. Oversized equipment may cause inefficient operation and ballooned expenses, while undersized extruders may create bottlenecks and insufficient production capacity. Careful management of these parameters makes the extruder suitable in the preexisting production line and operationally effective.
Evaluation of Control Systems and Automation Capabilities
The use of modern twin screw extruders with advanced control systems increases the accuracy and output of production. The provision of continuous measurement of temperature and pressure, adaptive systems for feeding, and the keeping of data logs allow the maintenance of quality and process consistency. Moreover, automation helps eliminate the need for corrections during operational situations and modifications of process conditions and simplifies the tasks within a factory. Effective control systems increase the productivity of the enterprise and facilitate business processes while, at the same time, increasing compliance with the legal requirements.
What are the Common Applications of Twin Screw Extruders?
Plastic Compounding and Recycling
Due to the twin screw extruders’ remarkable mixing and high throughput, they are very useful in the plastic compounding and recycling business. They can process a wide variety of materials with different compositions that include thermoplastics, additives, fillers, and reinforcements. This allows for consistent quality of homogeneous blends. Twin screw extruders also play a key role in recycling as they effectively reprocess waste plastics into reusable pellets, actively enabling a circular economy and reducing environmental harm. Extruders are crucial in the manufacturing of high-performance polymer blends and recycled materials since they can manage temperature and high shear forces.
Food Processing and Pet Food Industry
The range of use of twin screw extruders is further extended to food processing and pet food production, which requires precise control of heat and pressure. These machines allow the production of a wide range of products, such as breakfast cereals, snacks, and textured protein products. In pet food, twin screw extruders support diet customization through adjustment of moisture level and nutrient content. The technology provides precision in cooking and shaping to achieve texture and product quality all of which are the same. At the same time, extruders’ hygienic design ensures safety in food production.
Uses for the Pharmaceutical and Chemical Industry
In the pharmaceutical and chemical sectors, twin screw extruders serve an important purpose in the continuous processes and development of materials. They are largely used in the manufacture of solid dispersions, hot melt extruded dosage forms, and controlled-release formulations of drugs. The management of the mixing, residence time, and temperature ensures that the product’s performance and its stability is optimal. Similarly, in the chemical industry, twin screw extruders are used in the synthesis and compounding of specialty chemicals, adhesives, and polymers. Their ability to scale and greatly their efficiency make them perfect for both R&D and mass production applications.
How to Optimize Twin Screw Extruder Performance?
Fine-tuning Screw and Barrel Configurations
In order to improve the productivity of a twin screw extruder, the design of its screw and barrel has to be tailored accordingly, which is one major hurdle during production. With respect to various primary operations and a high degree of required uniformity, it is necessary to select the appropriate screw parts, such as kneading blocks, conveying elements, and mixing sections. In addition, the barrel has to be designed to suit the material so that control zones and vents are optimally placed and used. Adjustments of some components according to the rheological and operational characteristics of the material can lead to improved material throughput, reduced energy expenditure, and improved quality of the processed products.
Optimizing the parameters of single extruders for the different materials
In the case of the processed material that undergoes a twin screw extruder, the major process parameters have to be adjusted accurately to achieve the desired results. Particular attention that includes, but may not be limited to, screw rotational speed, feed rate, temperature profile, and pressure have to be set according to the material’s viscosity, thermal sensitivity, and melting point. In addition, with the use of a data-driven monitoring set, one can set parameters once and quickly change formulation without the worry of varying results. Responsible parameter fine-tuning enhances processing effectiveness, minimizes raw material waste, and yields a product of the same expected performance.
Applying Corrective Maintenance Procedures Effectively
To attain optimal operation for extended periods of time, twin screw extruders must be routinely serviced. Some preventive measures include examining screw elements, seal wear, and barrel wear to fix potential issues before they result in unscheduled downtime. Furthermore, cleaning of the screws and barrels between production runs avoids any form of contamination or degradation of the materials produced. In addition, watching over the gearboxes, bearings, and lubrication systems maintains the functioning of the mechanical parts. The beneficial result is the implementation of a ‘Maintenance Plan’ not only increases the life expectancy of the machine but also enhances the quality as well as the efficiency of production.
What are the Latest Innovations in Twin Screw Extruder Technology?
Advancements in Modular Screw Designs
Modular screw designs are a keystone development in the world of twin screw extruders. This design enhances the mechanical flexibility by permitting processors to select and change screw configurations as per the target application. Modular designs facilitate the optimization of screw elements for varied materials and formulations, which results in improved mixing, enhanced dispersion, and increased throughput. Furthermore, these modular designs aid in saving production time. Reconfiguration of screws takes less time and reduces downtime, thus allowing faster operational changes to suit market needs. This degree of control makes it possible to consistently reproduce products under varying conditions within tolerable limits of precision for application development.
Integration of Smart Control Systems
The application of twin screw extruders with smart control systems represents a major step towards automation in manufacturing. These systems make use of highly developed sensors, machine learning, and algorithms to analyze and track primary process features like temperature, pressure, torque, and material flow. Intelligent systems permit variable control modifying machine response which enhances product quality while correcting process deviations and errors. These technologies also improve traceability and verification, thus enabling control of more stringent quality standards set by the users. Incorporating intelligent control also reduces energy and material loss, thus gradually improving the sustainability and cost-effectiveness of the extrusion process.
Innovations in High Torque and High-Speed Extrusion
More recent changes concerning high-speed and high-torque extrusion technologies make it possible to process more challenging materials, such as high-shear, high-viscosity polymers or formulations more efficiently. Advanced designs of the gearbox and the better efficiency of motors have made it possible to increase the twin screw extruder torque and speed ranges, thus widening their scope of use. These improvements enable better melt quality, reduced residence time, and increased throughput without degrading product quality. Also, high-torque, high-speed extruders have proved more suitable for meeting industry needs for more productivity and less cost, thus enhancing their acceptance as key elements in advanced materials production.
